Montag, 19. Dezember 2022

7" LOS quad

The 7" Warthoxquad frame is in use to train and fly LOS in acro mode.
It was build initially to be powered by a 4S Lipo but...

One of my racing buddies (viva la France, Raphael 😁) showed me COB LED's that can be powered by 24V. You can get them from Amazon as e.g. as https://www.amazon.de/Streifen-Tesfish-Insgesamt-Lichtleisten-Wohnkultur/dp/B09C86F3BS/?th=1
I power the LED's directly from the Lipo and moved to 6S to have the right voltage.


Setup

  • Warthoxquad frame
  • KISS FC v2
  • KISS ESC 32A
  • Brotherhobby Avenger V2 1850kv
  • HQprop 7x4x3 v1s
  • ImmersionRC Ghost Atto RX
  • Tattu R-Line v5.0 6S 1400mAh Lipo

Pictures







Flight

First flight with the new LED's




Dienstag, 6. Dezember 2022

Qaad Infinitum (purple)

Since i like boxed frames a lot and my old Singularitum's are having some light cracks already i decided to build a new racing drone based on the Qaad Infinitum frame.
Again a full FETtec setup with Ghost RX/FPV TRX.

Components

FETtec FC G4 with FETtec alpha FW - https://fettec.net/shop/elektronik/flugsteuerung/fettec-fc-g4-v1.7

FETtec 4in1 ESC 45A - https://fettec.net/shop/elektronik/motor-regler-esc/fettec-4in1-esc-45a

FETtec spike absorber - https://fettec.net/shop/elektronik/sonstiges/fettec-spike-absorber

FETtec race wires - https://fettec.net/shop/elektronik/led/fettec-race-wire-6-2-stueck

iFlight Xing2 2207 1855KV 6S Race Motor - https://n-factory.de/iFlight-Xing2-2207-1855KV-6S-Race-Motor_1

Ghost Hybrid v2 - https://www.flyingmachines.de/products/immersionrc-ghost-hybrid-v2-uno

Lumenier AXII 2 U.FL Antenne - https://n-factory.de/Lumenier-AXII-2-Antenne-RHCP-UFL-Extended-Wire

HQProp-Durable-5X43X3 - https://n-factory.de/HQProp-Durable-5X43X3-V2S-Light-Blue

..and 3D print parts, bolts, screws, lipopad sponsored by Felix, Dominik, Heiko & Markus (quadmovr).

Pictures

Initial setup at Felix's birthday party

Initially the setup was with a FETtec AiO 35A. Was flying perfectly, but..





Rework - final setup

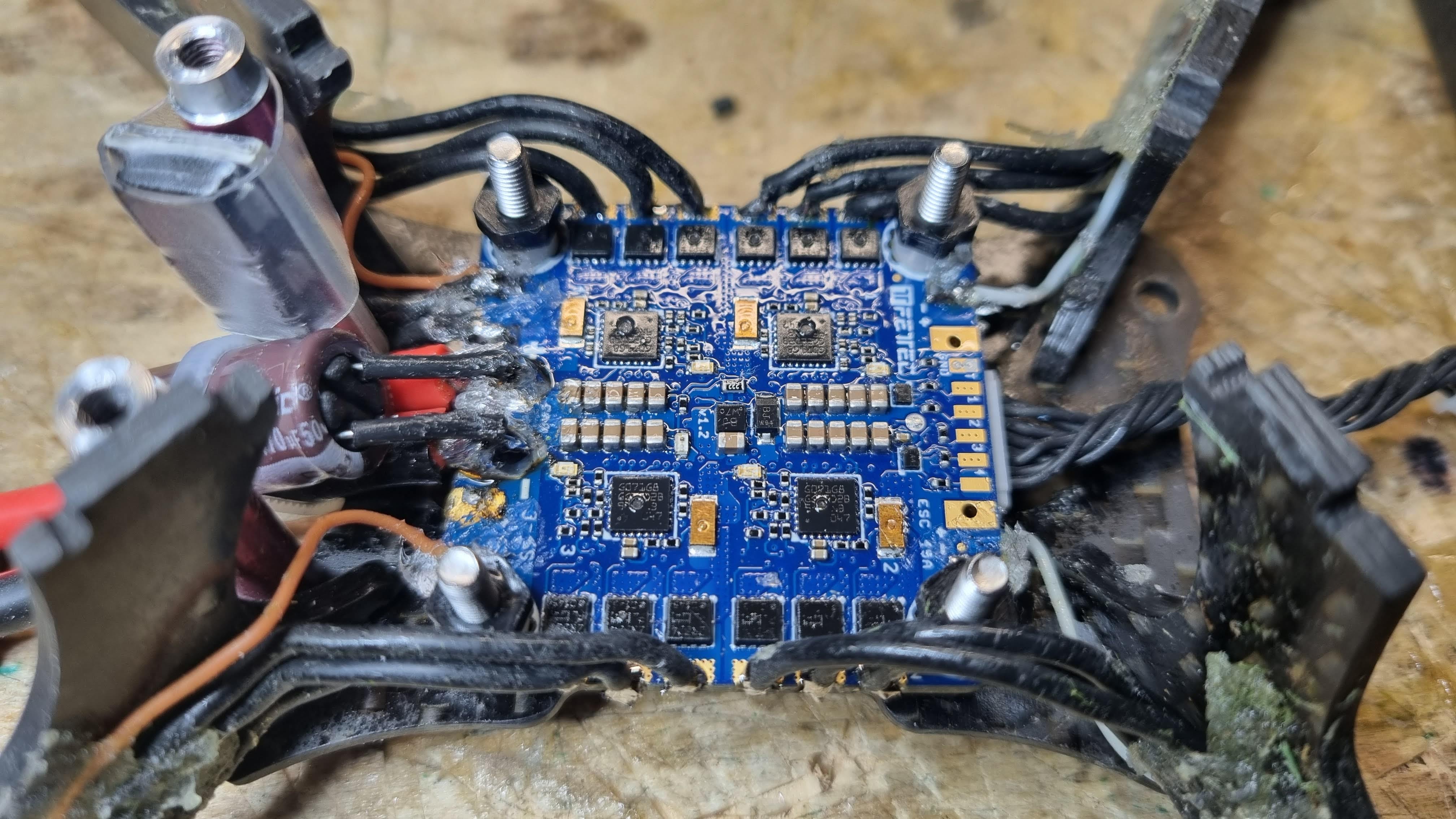

..when exchanging the power cable i mechanically desroyed the AiO board by using M3 bolts that were too wide. Therefore the final setup has been done with G4 FC and 45A 4in1 ESC.
